Elevator Parts for OTIS

Elevator Parts for OTIS Supplier & OEM-Compatible Replacement Components



Direct-fit mechanical and electrical replacement components for OTIS GeN2, SPEC 60, MCS322, ACD, and SkyRise elevator systems. Supply includes control boards, flat coated steel belts, traction sheaves, door drives, and safety devices verified for field compatibility.

Sourcing replacement parts for OTIS elevators requires strict alignment with OEM board revision codes, pin assignment layouts, and flat belt tensile specifications. We manufacture and warehouse direct-replacement components matching original mounting dimensions and electrical parameters, eliminating field modifications and reducing elevator downtime during emergency repairs or system overhauls.


First 12345 Last 1/5

Elevator Parts by Brand



OTIS

GECB, LCB2, TCBC microboards, ReGen drives, DO2000 door operators, AT120 drives, and polyurethane flat belts

KONE

LCE CPU, OPT, OPT7 boards, KDM and V3F drives, MX06, MX10, MX18 sheaves, and AMD door drives.

Schindler

Smart MRL, 3300, 5500, Bionic 5 mainboards, and VAR15 door operators.

ThyssenKrupp (TK Elevator)

TAC32, CPI, Euro-Direct drives, and door interlocks.

Mitsubishi / Fujitec / Hitachi

GPS-3, NexWay control units, and custom signal expansion boards.

Specifications, MOQ & Lead Time



Parameter

Specification

Minimum Order Quantity (MOQ)

1 unit for control boards, drives, flat belts, and sheaves; 10 units for wear parts such as rollers and push buttons

Operating Voltage

AC 220V / 380V / 400V / 480V, 50/60 Hz; DC 24V control logic

Flat Belt Tensile Strength

Minimum 32 kN per belt for standard 30 mm width

Sheave Material Grade

QT500-7 ductile iron with induction-hardened rope and belt grooves

Standard Production Lead Time

24–48 hours for in-stock electronic boards, flat belts, and rollers; 7–10 working days for customized sheaves and controller cabinets



Elevator Components by Type

Control Boards & Drive Modules
Main logic microboards including GECB, LCB2, TCBC, and ALCB series with pre-configured software jumpers.
Inverter and drive modules including ReGen VF drive packages and OVF20 or OVF30 inverter assemblies.
Remote serial communication boards including RS14 and RS32 series, plus load-weighing sensor modules.



Flat Coated Steel Belts & Traction Sheaves
Polyurethane-coated flat steel belts in 30mm and 60mm width options reinforced with high-tensile steel cords.
Hardened traction sheaves for GeN2 gearless machines including AAA20570AA1 and AAA20570AB1 series.
Deflector sheaves, encoder sensors, and electromagnetic brake solenoids.

Door Operator & Landing Hardware

DO2000, AT120, and NGSO door operator control boxes and motor packages.

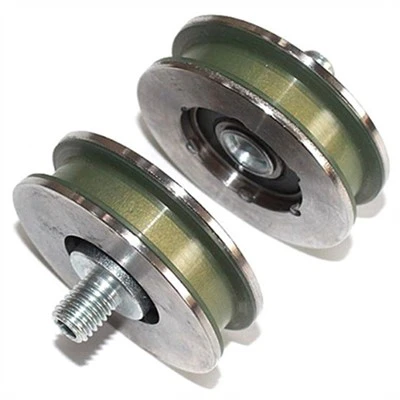

Hanger rollers, eccentric locks, track profiles, and door interlock assemblies.
Infrared light curtains with 154-beam matrix and ambient light filtering.

Signal Fixtures & Shaft Sensors

Car Operating Panels (COP) and Landing Operating Panels (LOP) utilizing OTIS serial bus protocols.
Position indicators including Dot-Matrix, LCD, and TFT displays matching original faceplate cutouts.

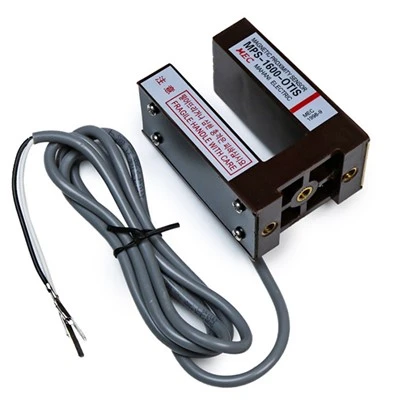

Vane sensors, magnetic reed switches, and traveling cable assemblies.

Safety Devices & Mechanical Hardware

Progressive safety gears, speed governors, and oil buffers compliant with EN81 and ASME codes.
Guide shoes, sliding inserts, counterweight frames, and compensation chains.





Elevator Modernization Solutions

GeN2 Flat Belt & Sheave Replacement Package Complete swap kit for worn polyurethane flat belts and drive sheaves. Includes pre-cut belt lengths with certified end-terminals and hardened sheaves to prevent early belt surface wear.



GECB Control System Overlay & Modernization Replaces obsolete LCB2 or legacy relay-based controllers with updated serial microboard cabinets while retaining existing hoistways, motors, and car frames. Reduces installation time via plug-in wiring interfaces.



DO2000 or AT120 Door Operator Retrofit Upgrades legacy mechanical door operators to VVVF-driven door operator systems. Includes pre-drilled adapter plates tailored to fit OTIS car door headers without field welding.

OTIS Elevator Communication Board RS53 OMA4351AEN



OTIS Elevator GDCB Board AEA26800AKT1



Compatibility & Model Matching

To ensure direct match without site installation delays, provide the following parameters during quotation request:



OTIS Part Number or PCB marking code such as GAA26800LC1 or GDA21240D1.



Flat Belt Data: Belt width in 30mm or 60mm, total thickness, number of inner steel cords, and elevator travel height.



Drive or Inverter Specification: KW rating, input AC voltage, and encoder feedback protocol.



Door Operator Type: DO2000, AT120, or NGSO configuration with door clear opening (CO or 2CO) width.



Our engineering team verifies circuit pinouts, software jumper layouts, and physical mounting footprints before dispatch.



Quality Control & Testing


Automated Optical Inspection (AOI)

Circuit boards undergo 100 percent AOI testing followed by functional circuit simulation.

Thermal Load Burn-In

Microboards and ReGen drive modules undergo a 24-hour continuous burn-in cycle under full thermal and electrical load.

Flat Belt Tensile & Fatigue Testing

Polyurethane flat belts undergo batch testing for tensile limit, steel strand bonding, and flexural fatigue.

Pinout & Protocol Verification

Every replacement board is tested against OTIS original terminal layouts and Service Tool (SVT) diagnostic routines.



Packaging, Delivery & After-Sales



Packaging: Anti-static ESD shielding bags for electronic boards; export plywood cases with internal foam protection for sheaves, drives, and door operators.

Shipping Options: Express air delivery via DHL, FedEx, or UPS for urgent elevator repairs; ocean freight in FCL or LCL for bulk orders.

Technical Documents: Shipment includes wiring connection diagrams, DIP switch setup guides, and parameter mapping sheets.

Warranty: 12 months for electronic circuit boards; 18 months for mechanical sheaves and driving machinery.

productcate-1-1

productcate-1-1



Certificate



productcate-1-1
productcate-1-1
productcate-1-1
productcate-1-1





fAQ





Q: Are your replacement PCB boards fully compatible with OTIS Service Tool (SVT) diagnostics?

A: Yes. Our replacement boards feature standard SVT communication interfaces. Field technicians can connect standard SVT devices or onboard keypads to read error logs, monitor I/O status, and adjust system parameters.

Q: How do your flat coated steel belts compare to original OTIS GeN2 flat belts?

A: Our flat belts are manufactured using high-tensile galvanized steel cord cores encapsulated in wear-resistant polyurethane. Dimensions, cord counts, and flexural tensile properties match original OEM specifications and fit standard GeN2 drive sheaves.

Q: Can we replace individual GECB or LCB2 boards without replacing the entire control cabinet?

A: Yes. Our boards are designed as direct plug-and-play replacements. Terminal pin definitions and connector geometries match original OTIS board layouts, requiring no rewiring of the main traveler harness.

Q: What is the delivery lead time for an emergency order of flat belts or control boards?

A: Stocked items ship within 24 to 48 hours via express air freight. Same-day dispatch processing is available for urgent site breakdown orders confirmed before 14:00 UTC.

Q: What details are required to order a replacement traction sheave for an OTIS GeN2 machine?

A: Provide the original sheave part number such as AAA20570AA1, outer diameter, pitch diameter, number of belt slots, belt width in 30mm or 60mm, and shaft center bore dimensions.

Q: What technical support is provided if an error code appears during board installation?

A: Each shipment includes an error code cross-reference manual and jumper setup map. Technical support engineers provide remote troubleshooting assistance via video call or email based on site SVT readout codes.

As one of the leading elevator parts for otis manufacturers and suppliers in China, we warmly welcome you to wholesale bulk elevator parts for otis in stock here from our factory. All elevator parts are with high quality and competitive price. For pricelist, contact us now. OTIS Elevator Test Tool GAA21750AK3, OTIS Elevator Motherboard GDA26800KA1, elevator parts for otis
