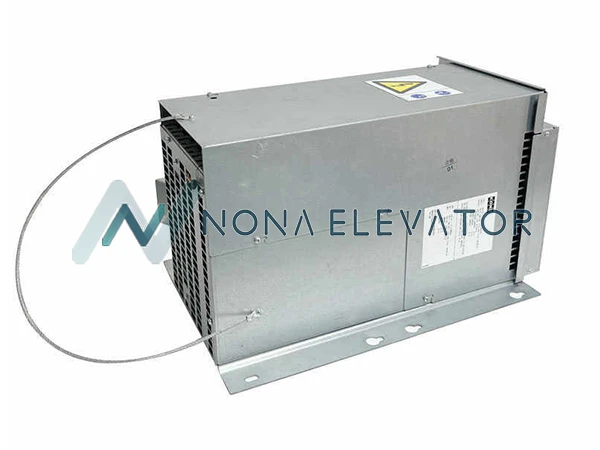

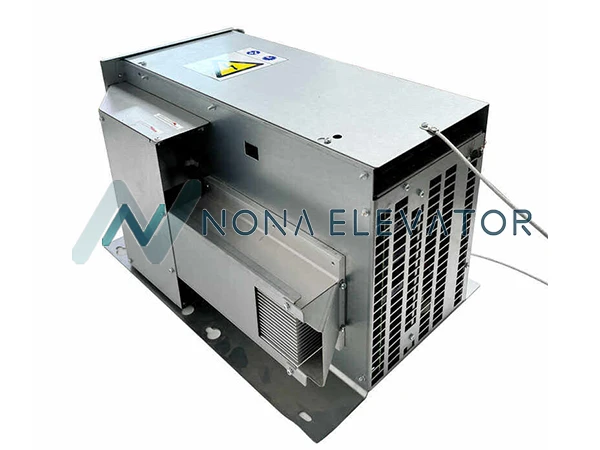

KONE Elevator Inverter KDL16L KM953503G50
Model Number: KM953503G50
MOQ: 1pcs
Original: China
Certificate: ISO9001
Warranty Time: 12Months
Delivery Time: 3~15 Working Days
Payment Terms: T/T, L/C, Western Union, MoneyGram, Paypal
The KONE Elevator Inverter KDL16L KM953503G50 serves as a core control device within elevator drive systems. We simultaneously offer other inverter models in the same series. Higher-current versions can substitute lower-current ones; please note that the 12A and 14A models have longer lead times and higher prices.
We leverage a mature supply chain, professional testing platforms, and dedicated technical support engineers to provide highly reliable and high-performance inverter solutions. We specialize in the global supply of elevator spare parts and drive systems. If you have any questions, please feel free to contact us.
Product Parameter
|
Parameter |
Specification |
|
Category |
Elevator Inverter |
|
Brand |
KONE |
|
Model |
KDL16L KM953503G50 |
| Installation Location | Elevator Machine Room |
| Type | KDL16L/18A(CONTINUOUS) |
| Dimensions | 50*35*31CM |
| Input | 20A,400VAC -15%/+10%,3-Ph,50/60 Hz |
| Output | 340VAC,3-Ph,0-250 Hz CONTINUOUS CURRENT 18A MAXIMUM CURRENT NOMINAL CURRENT |
| Weight | 15KG |
| SUITABLE FOR USE ON A CIRCUIT CAPABLE OF DELIVERING NOT MORE THAN 5,000 rms SYMMETRICAL AMPERES SUPPLY RATING MAXIMUM 400 VOLTS, 35 R |
|
|
Original |
China |
|
Warranty Time |
12Months |
|
Delivery Time |
3~15 Working Days |
Note: Continuous drive current ≥ traction machine rated current × 1.1-1.2
| Drive Model | Output Current | Motor Current | Load/ Speed | Kone Model |
| KDL16L 12A | 12A | ≤10A | 630–800kg 0.63–1.0m/s |
KM953503G21 |
| KDL16L 14A | 14A | ≤12A | 800–1000kg 1.0–1.6m/s |
KM953503G22 |
| KDL16L 18A | 18A | ≤15A |
1000–1600kg 1.6–1.75m/s |
KM953503G23 |
| KDL16L 20A | 20A | ≤17A | 1600–2000kg 1.75m/s |
KM953503G24 |
| KDL16L 25A | 25A | ≤22A | Big load High speed |
KM953503G25 |
|
|
|
|
|
|
|
|
|
|
Precise Vector VVVF Control, Smooth & Comfortable Ride
The KONE Elevator Inverter KDL16L KM953503G50 adopts an advanced vector control algorithm for precise adjustment of elevator speed and torque. Soft start/stop design eliminates mechanical shock, with leveling accuracy ≤±1mm, greatly improving passenger comfort.it is responsible for motor speed regulation, start-up control, and operational stability, making it a critical component for ensuring the efficient and safe operation of elevators.
Energy Regeneration & Saving, Reduced Operating Costs
Equipped with regenerative technology, it recovers braking energy when the elevator descends with a load or ascends lightly, feeding back to the grid or reusing internally. Saves 30%+ energy vs conventional inverters, cutting long-term power and maintenance costs.
Comprehensive Safety Protection, Industrial-Grade Stability
Built-in full-range protection (overcurrent /overvoltage/ undervoltage/ overload/ overheat/ short-circuit) with millisecond fault response; MTBF ≥120,000 hours, adapting to harsh conditions.
Why Choose Us?
Guaranteed Quality - 100% Original manufacturer products.
Best Price - Factory-direct pricing.
Reliable & Fast Delivery - Faster than 90% of suppliers.
One-Stop Elevator System Provider - Saving you 90% of your time.
After-Sales Service Protection - Near-zero quality complaints in the last 3 years.
Product Packaging
Shipping & Payment
After-Sales Support
Pre-Sales:
Consultation & Customization - Detailed product introduction, technical support, and customized solutions for optimal selection.
In-Sales:
Installation & Commissioning - Professional guidance for smooth and quick integration into your system.
After-Sales:
Warranty & Long-term Support - One-year warranty with prompt repair/replacement for defects, plus continuous tech support.
FAQ
Q: Is this a complete unit or an accessory?
A: It is a complete frequency converter unit.
Q: How can I get my order?
A: Inquiry - quotation - confirm-send Pl - make the payment - arrange the parts delivery - receive the parts.
Q: What is the delivery time?
A: For common parts, available in the warehouse, which can be shipped within 1-2 days after finishing process, some OEM products generally can be shipped within one week.
Q: What is the guarantee for the parts we purchased?
A: Our products come with a standard 12-month warranty, backed by our dedicated engineering team for technical support.
Q: How can I pay?
A: We accept a variety of payment methods, including TT, L/C, Western Union, MoneyGram, PayPal, and Alibaba Trade Assurance.
Q: Can you provide after-sales service?
A: Yes, we have a professional person to follow up on your order when put into use. If any problem, we can Respond within 24 hours after receiving your feedback.
