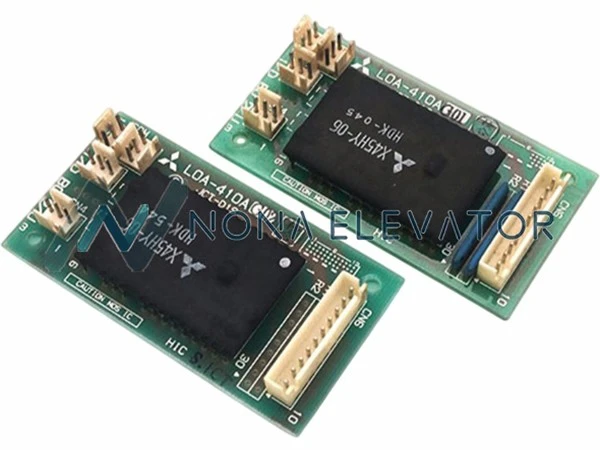

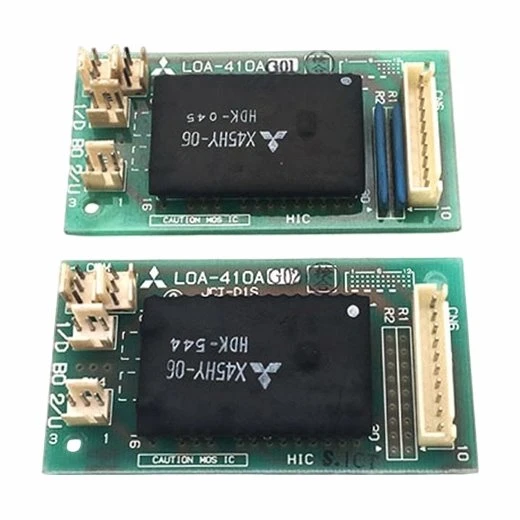

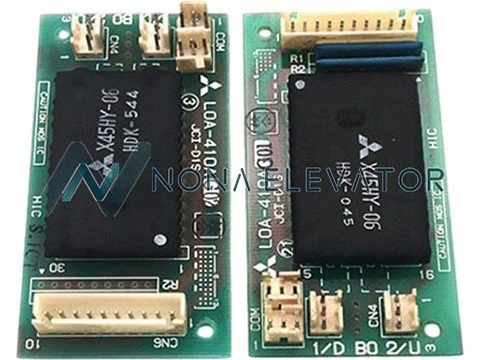

MITSUBISHI Elevator PCB LOA-410
Model Number: LOA-410
MOQ: 1pcs
Original: China
Certificate: ISO9001
Warranty Time: 12Months
Delivery Time: 3~15 Working Days
Payment Terms: T/T, L/C, Western Union, MoneyGram, Paypal
MITSUBISHI elevator PCB LOA-410 is primarily used to receive landing calls from passengers and transmit these signals to the elevator control system. It facilitates elevator summoning, dispatching, and arrival response, serving as a critical human-machine interface (HMI) between the passenger and the elevator system.
Product Parameter
|
Parameter |
Specification |
|
Category |
Elevator PCB |
|
Brand |
MITSUBISHI |
|
Model |
LOA-410 |
|
Rated Voltage |
DC 24V |
|
Communication Protocol |
Compatible with SPVF system-specific protocol |
|
Response Time |
≤0.3 Seconds |
|
Operating Temperature |
-20°C to 60°C |
|
Operating Humidity |
≤95% (Non-condensing) |
|
Original |
China |
|
Warranty Time |
12Months |
|
Delivery Time |
3~15 Working Days |
As the primary interface between the elevator and the user, MITSUBISHI elevator PCB LOA-410 ensures reliable registration, transmission, and feedback of floor call signals within the hoistway environment.
Main Functions
1. Precise Capture & Registration of User Commands
Accurate Call Response: MITSUBISHI elevator PCB LOA-410 utilizes hardware (optocouplers/digital chips) to effectively filter out button contact bounce and electromagnetic noise.
Signal Digitization: MITSUBISHI elevator PCB LOA-410 converts physical button actions into system-recognizable digital signals, preparing the data for downstream transmission.
2. Stable Long-Distance Command Transmission
High-Efficiency Data Communication: Acts as a network node, using differential serial bus protocols to upload call commands via a single twisted pair to the main control board (PCL/CPU board).
Anti-Interference Assurance: MITSUBISHI elevator PCB LOA-410 features robust common-mode interference suppression, ensuring error-free transmission and zero packet loss over distances of up to 100 meters within the complex electromagnetic environment of the hoistway.
Core Advantages
High-Speed Stable Communication:
By employing a differential serial bus protocol, MITSUBISHI elevator PCB LOA-410 achieves high-speed data exchange with the main controller over a single twisted pair. This remains MITSUBISHI elevator PCB LOA-410 reliable across distances up to 100 meters, ensuring that call commands and status data are transmitted without error.
Precision Signal Acquisition:
Through optocoupler isolation or high-performance digital input chips, MITSUBISHI elevator PCB LOA-410 filters out electromagnetic interference and contact chatter. This guarantees that every floor call is captured accurately and without omission.
Flexible Address Configuration:
Floor addresses (e.g., Floor 1, Floor 10) can be easily configured via on-MITSUBISHI elevator PCB LOA-410 DIP switches or jumpers. This makes installation and commissioning intuitive and straightforward, requiring no specialized programming tools and significantly reducing labor time on-site.
Why Choose Us?
Guaranteed Quality - 100% Original manufacturer products.
Best Price - Factory-direct pricing.
Reliable & Fast Delivery - Faster than 90% of suppliers.
One-Stop Elevator System Provider - Saving you 90% of your time.
After-Sales Service Protection - Near-zero quality complaints in the last 3 years.
Product Packaging
Shipping & Payment
After-Sales Support
Pre-Sales:
Consultation & Customization - Detailed product introduction, technical support, and customized solutions for optimal selection.
In-Sales:
Installation & Commissioning - Professional guidance for smooth and quick integration into your system.
After-Sales:
Warranty & Long-term Support - One-year warranty with prompt repair/replacement for defects, plus continuous tech support.
FAQ
Q: What is the core function of MITSUBISHI elevator PCB LOA-410?
A: MITSUBISHI elevator PCB LOA-410 is a core component within the elevator control system. It is responsible for elevator motion control, signal transmission, and data processing.
Q: How can I get my order?
A: Inquiry - quotation - confirm-send Pl - make the payment - arrange the parts delivery - receive the parts.
Q: What is the delivery time?
A: For common parts, available in the warehouse, which can be shipped within 1-2 days after finishing process, some OEM products generally can be shipped within one week.
Q: What is the guarantee for the parts we purchased?
A: Our products come with a standard 12-month warranty, backed by our dedicated engineering team for technical support.
Q: How can I pay?
A: We accept a variety of payment methods, including TT, L/C, Western Union, MoneyGram, PayPal, and Alibaba Trade Assurance.
Q: Can you provide after-sales service?
A: Yes, we have a professional person to follow up on your order when put into use. If any problem, we can Respond within 24 hours after receiving your feedback.
